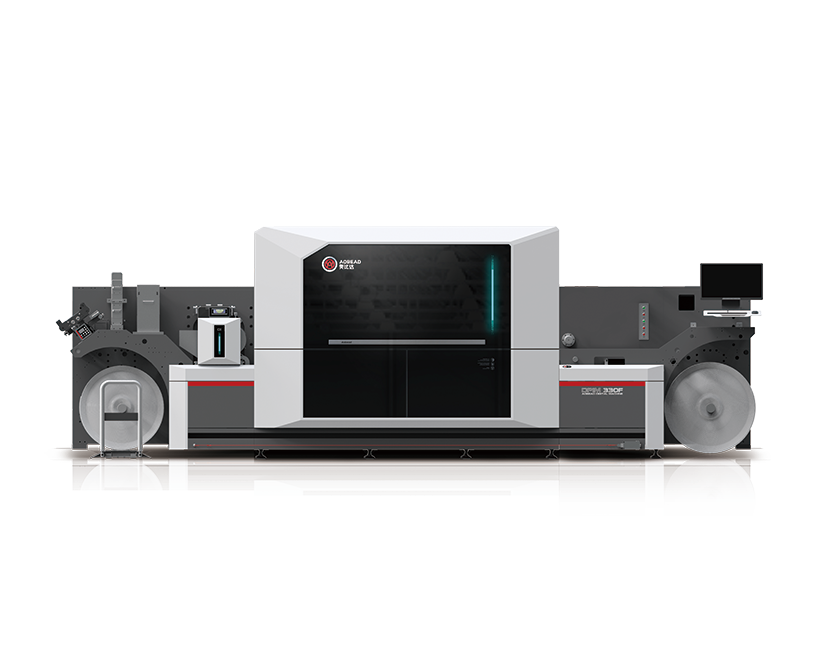

Elf Series Standard digital printing machine DSMART-220

Elf Series Standard digital printing machine DSMART-220

Performance Characteristics

1. Entry-level digital printing machine to ensure customer invest equipment at a very low cost, meanwhile can help customer reduce plate-making cost and material loss;

2. The equipment occupies a small area, saves production space, and makes the equipment easy to install and maintain;
3. It is easy to achieve quantum cloud code, full-color variable code and dot matrix code printing, one label and one code, meeting the industrial demand of security traceability.



Case video

Elf Series Standard digital printing machine DSMART-220
Elf Series Standard digital printing machine DSMART-220
Specifications
Maximum resolution
Standard:1200×600dpi ,Pro:1200×1200dpi
Spraying speed
Standard:30~60m/min ,Pro:150m/min
Material width range
20~220mm
Material thickness size
0.02~0.5mm
Ink type
UV ink
Ink configuration
CMYK four-color as standard (white is optional)
Maximum detection accuracy
0.02mm²
Relative humidity
40%-60%(no condensation)
Ambient temperature
20℃-26℃
Power supply requirement
AC380V/50Hz/45A
Equipment weight
5200KG
Equipment size
4500mm×1800mm×1900mm


Applicable industries

Applicable materials
Film: PET/PVC/PP/PE/BOPP and other films
Paper: synthetic paper, coated paper and aluminum foil and other special materials

Applicable label industries
