Digital Cold Foil Stamping machine

Digital Type

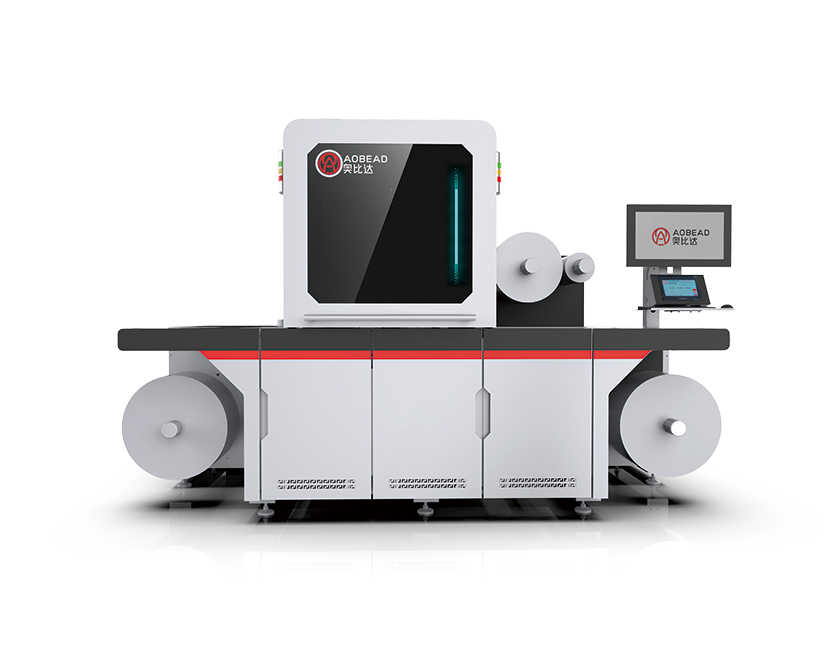

Effect Series AOBEAD Digital Cold Foil Stamping machine DCFS-330

Performance Characteristics

DCFS-330 can realize digital synergistic process effects such as cold bronzing, 3D bumping and stacking, partial varnish, and secondary hot stamping without plate making. At the same time, the pattern after printing is clear and beautiful, the gloss is lasting, and the brightness and thickness of bronzing far better than traditional printing. It is especially suitable for the synergistic printing of daily chemical labels, wine labels, wine box packaging, and better cosmetic packaging.

Specifications

Maximum resolution

1200×600dpi

Bronzing speed

30m/min

Material width range

20~330mm

Material thickness size

10-70μm

Bronzing method

digital cold perm

Relative humidity

40％-60％(no condensation)

Ambient temperature

20℃-26℃

Power supply requirement

AC380V/50Hz/85A

Equipment weight

2200KG

Equipment size

3000mm×1350mm×1750mm

Applicable industries

One-stop service solution

Independent product model, cooperate with various printing processes such as offset printing, silk screen printing, gravure printing, etc. to achieve post-press efficiency and enhance the added value of products, especially suitable for daily chemical labels, wine labels, wine box packaging, and better cosmetic packaging. Efficient printing.

From soft shrink materials to uncoated substrates

Highly variable UV coating 3D synergies and digital cold foil synergies can be achieved to create 3D stereoscopic effects and shiny metallic luster for prints.
