Digital Type

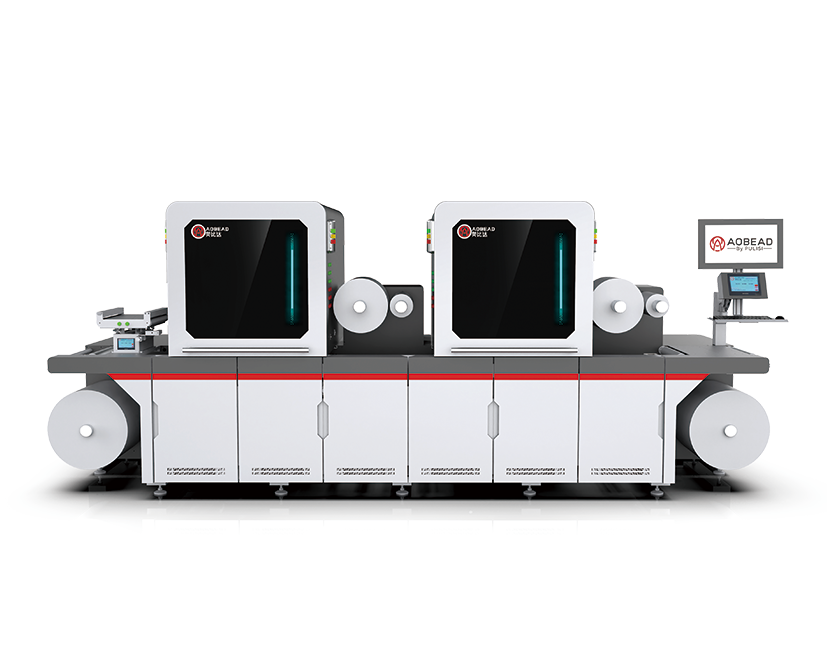

Effect Series Two Station UV Digital Cold AOBEAD, the Sub-brand of  foil Stamping Machine DCFS-330

Effect Series Two Station UV Digital Cold AOBEAD, the Sub-brand of foil Stamping Machine DCFS-330

Performance Characteristics

Double-station bronzing can increase the double effect and double bronzing on the same image printed document at one time, realizing multi-color and multiple bronzing effects, and increasing more possibilities for label personalization.

Case video

Effect Series Two Station UV Digital Cold AOBEAD, the Sub-brand of  foil Stamping Machine DCFS-330
Effect Series Two Station UV Digital Cold AOBEAD, the Sub-brand of  foil Stamping Machine DCFS-330
Specifications
Maximum resolution
1200×600dpi
Bronzing speed
30m/min
Material width range
20~220mm
Material thickness size
10-70μm
Bronzing method
digital cold perm
Relative humidity
40%-60%(no condensation)
Ambient temperature
20℃-26℃
Power supply requirement
AC380V/50Hz/85A
Equipment weight
2200KG
Equipment size
3800mm×1900mm×1900mm

Applicable industries

One-stop service solution

Independent product model, cooperate with various printing processes such as offset printing, silk screen printing, gravure printing, etc. to achieve post-press efficiency and enhance the added value of products, especially suitable for daily chemical labels, wine labels, wine box packaging, and better cosmetic packaging. Efficient printing.



From soft shrink materials to uncoated substrates

Highly variable UV coating 3D synergies and digital cold foil synergies can be achieved to create 3D stereoscopic effects and shiny metallic luster for prints.
